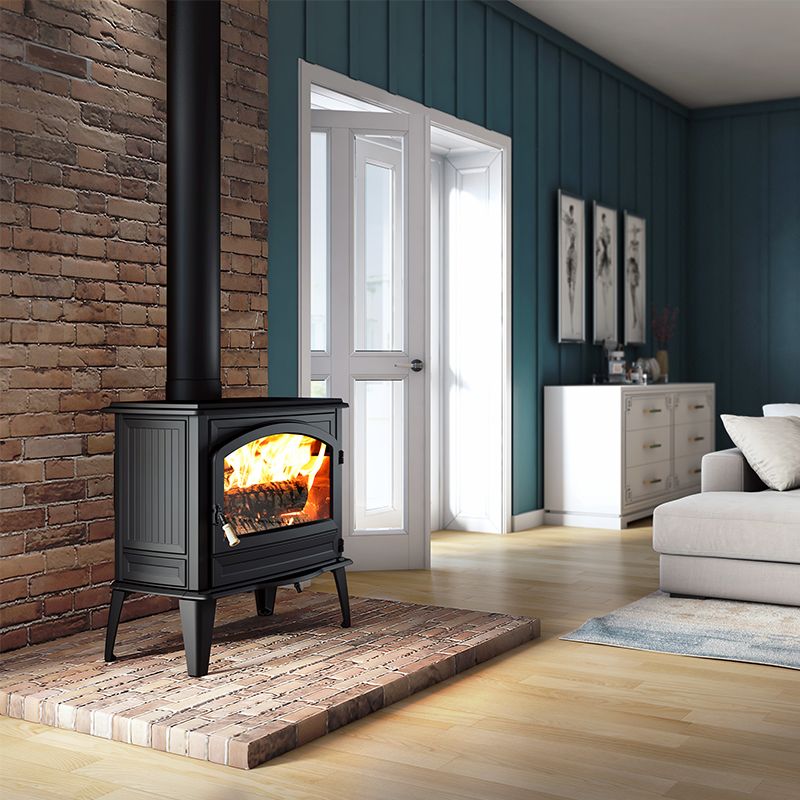

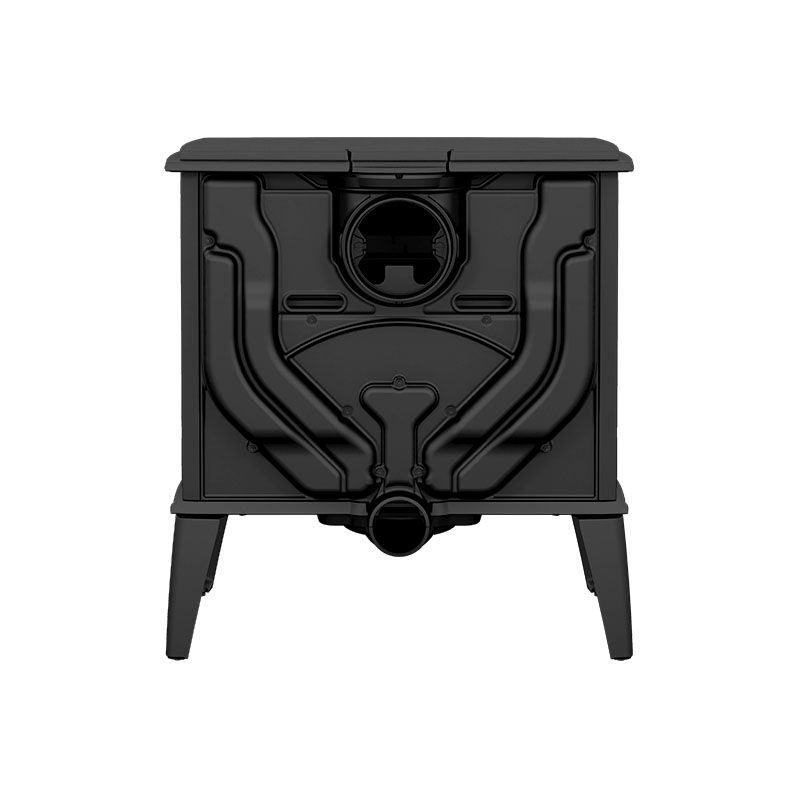

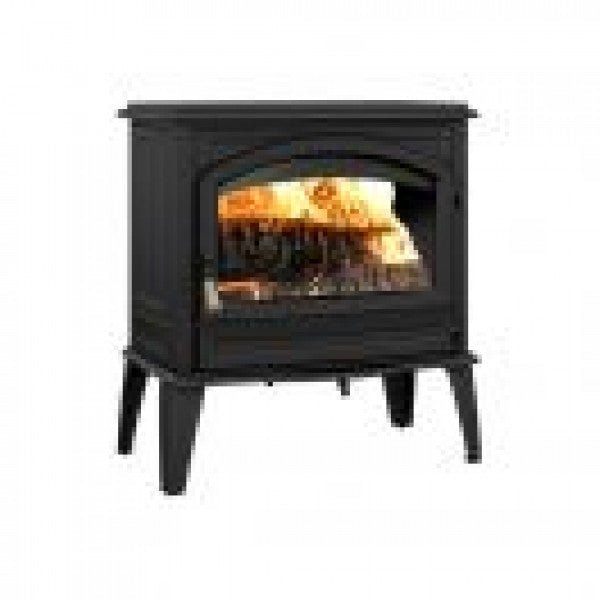

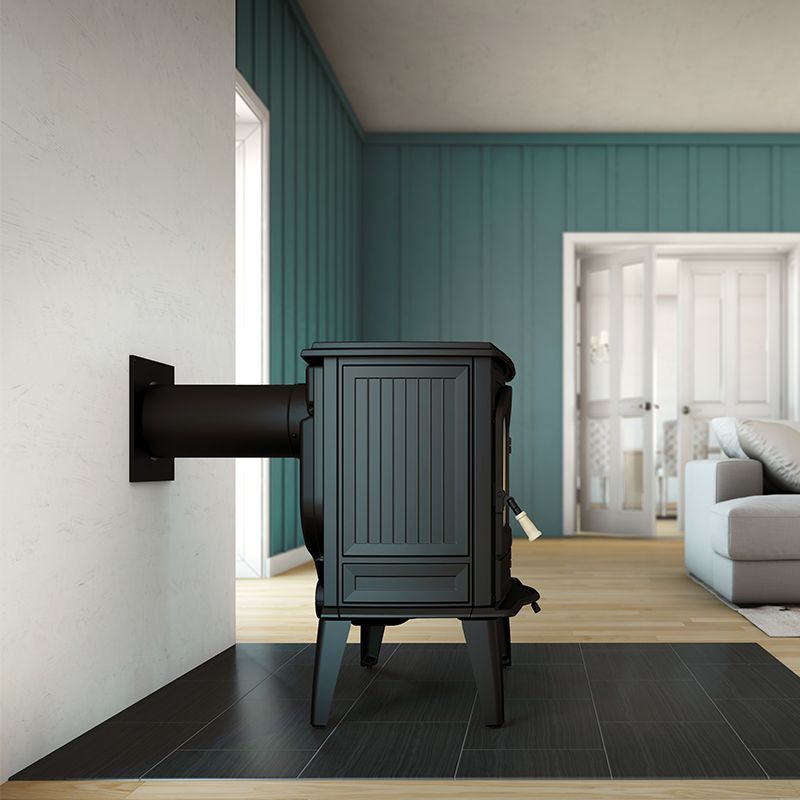

Entirely made of cast iron, the Cape Town 1800 is ideal for heating up to 2000 sq² with its 75,000 BTU/h of maximum power. Certified at 1.8 g/h, this non-catalytic unit is the only Drolet model to offer a flue outlet at the back and on the top of the stove. The Cape Town 1800 has a large viewing area as well as a full-width andiron to hold logs during loading. Its classic design and distinguished cast iron finish give it all its charm.

Included: ash drawer, ceramic glass, ash lip, broad-spectrum air damper

• - Up to 8 hours of burn time
• - 21’’ logs
• - 2 ft³ firebox volume
• - EPA certified
• - Made in Belgium
• - Limited lifetime warranty
• - Certified for mobile home and alcove installation
• - Weight: 424 lbs

Options: heat shield

SPECIFICATIONS

Fuel type Dry cordwood (16" recommended)
Recommended heating area (9) 500 - 2,000 ft²
Overall firebox volume 2.0 ft³
EPA loading volume 1.55 ft³
Maximum burn time (9) 8 h
Maximum heat output-dry cordwood (4) 75,000 BTU/h (22 kW)
Minimum overall heat output rate (4) (5) 13,784 BTU/h (4.04 kW)
Maximum overall heat output rate (4) (5) 57,684 BTU/h (16.91 kW)
Average overall efficiency-dry cordwood (HHV) (5) (6) 71 %
Average overall efficiency-dry cordwood (LHV) (5) (7) 76 %
Optimum efficiency (1) (2) 78 %
Optimum heat transfer efficiency (8) 77 %
Average particulate emission rate (3) 1.81 g/h
Average CO (10) 120 g/h
Size Large
Alcove installation approved Yes
Premium quality blower included (CFM) No
Certified according to applicable standards By an accredited laboratory (CAN/USA)
Combustion technology Non-catalytic
Flue outlet diameter 6"
Distance-center of the flue outlet to back unit 4 1/8"
Distance-center of the flue outlet to side unit 15 3/8"
Chimney diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height 12'
Overall dimension (Width) 30 3/4"
Overall dimension (Depth) 22 5/8"
Overall dimension (Height) 32 5/8"
Door type Single, glass with cast iron frame
Door opening size (Width) 22"
Door opening size (Height) 9 1/2"
Glass type Ceramic glass
Glass surface - W x H 20 1/2" x 12"
Firebox size (Width) 21 7/8"
Firebox size (Height) 9 1/2"
Firebox size (Depth) 13 1/4"
Maximum log length 21"
Log positioning Loading over the width
Firebox lined with refractory bricks No
Baffle type High-quality vermiculite
High-efficiency certified appliance CSA B415.1-10 only approved for Canada
Canadian Standard (emissions) CSA B415.1-10
Canadian Standard (safety) ULC S627
USA Standard (safety) UL 1482
Warranty Limited lifetime
Shipping weight 545 lb (247 kg)
Distance-center of the flue outlet to floor 26 3/4"
Molded refractory panels Yes

CLEARANCE TO COMBUSTIBLES*

Canada United States
Single wall pipe Double wall pipe Single wall pipe Double wall pipe
Clearance - Back wall 18" 10" 16" 16"
Clearance - Corner 16" 8" 84" 84"

Installation and Operation Manual
