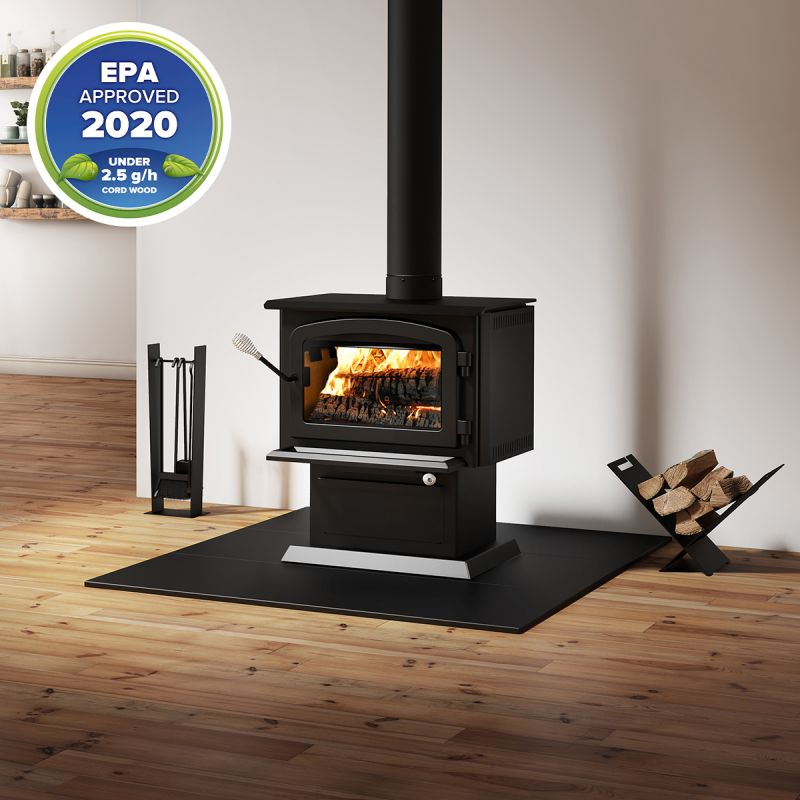

Of medium size, the Blackcomb II wood stove is ideal for heating spaces up to 1,800 ft² with a maximum heat output of 65,000 BTU/h. EPA certified at 1.26 g/h, this non-catalytic unit represents an eco-responsible heating source. The Blackcomb II is equipped with side panels to reduce clearances to combustible materials, as well as a top air deflector, to boost air movement through the room.
Included: pedestal with ash drawer, top air deflector, ceramic glass, side panels, ash lip, air damper
- Up to 6 hours burn time
- Up to 18'' logs
- 1.9 ft³ firebox
- Heavy duty 5/16'' steel top
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
Options: blower, thermodisc, firescreen, fresh air intake kit
Heating area 500 - 1,800 Ft2
Size 24 7/8" W X 24 7/8" D X 30 5/8" H
Maximum log length 18"
Average particulate emissions rate (1) 1.26 g/h
Appliance performance (2)
Fuel type Dry cordwood
Recommended heating area-ft² () 500 - 1,800
Overall firebox volume-ft³ 1.9
EPA loading volume-ft³ 1.44
Maximum burn time () 6 h
Maximum heat output-dry cordwood (3) 65,000 BTU/h (19 kW)
Overall heat output rate < (3) (4) 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)
Average overall efficiency (EPA cribs/Douglas fir) (4) N.A. (HHV) (5) N.A. (LHV) (6)
Average overall efficiency (dry cordwood) (4) 70 % (HHV) (5) 75 % (LHV) (6)
Optimum overall efficiency (7) (8) 78 %
Optimum heat transfer efficiency (9) 74 %
Average particulate emissions rate (1) 1.26 g/h
Average CO (10) 58 g/h
Blackcomb II stove install & owner's manual
Blackcomb II stove dimensions
General Features
Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 18"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 12'
Baffle type High-quality vermiculite
Approved for an alcove installation Yes
Approved for a mobile home installation Yes, with fresh air intake
Shipping Weight 325 lb (147 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface “ dimensions (Width X Height) 15 3/4" x 9 3/4"
Glass air-wash system Yes
Overall dimension (Height) 30 5/8"
Overall dimension (Width) 24 7/8"
Overall dimension (Depth) 24 7/8"
Door opening “ dimension (Height) 8"
Door opening - dimension (Width) 17 1/4"
Firebox “ dimension (Height) 11 7/8"
Firebox “ dimension (Width) 19 5/8"
Firebox “ dimension (Depth) 13 1/2"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Model Pedestal
Steel thickness “ body 3/16"
Steel thickness “ top 5/16"
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC-S627
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
Canada United-States
Single wall pipe Double wall pipe Single wall pipe Double wall pipe
Clearance “ back wall 14 1/2" 7 1/2" 13" 7 1/2"
Clearance - corner 12" 12" 12" 12"
Clearance “ side wall 10" 10" 10" 10"
Clearance “ top (measured from the platform on which the appliance is installed)** 84" 84" 84" 84"
